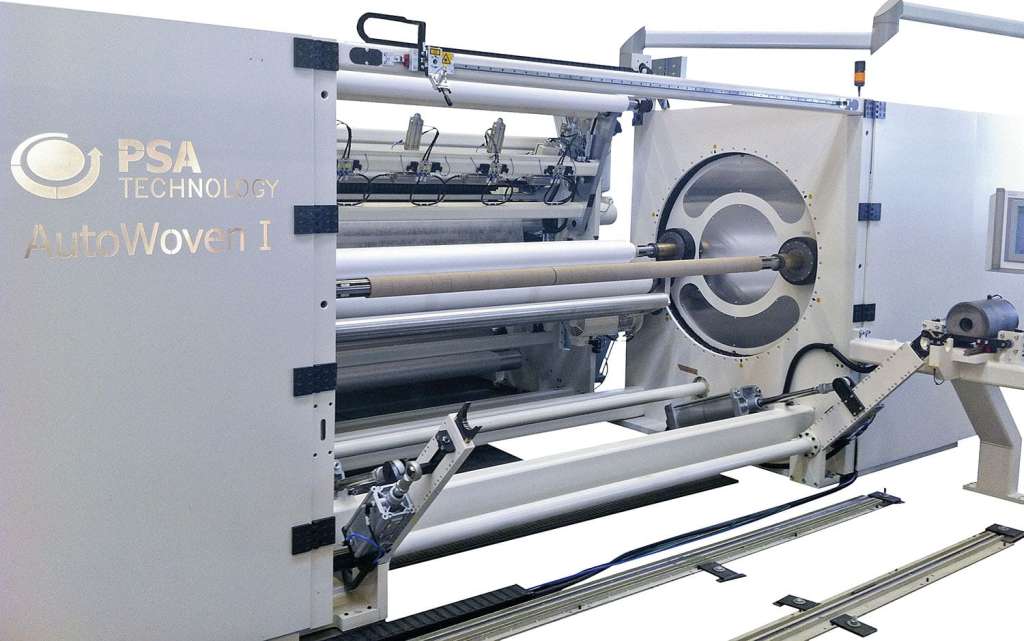

The automatic or fully automatic reverse-winding machine is designed for continuous winding at the end of the production line. It is used in nonwoven production lines such as spunlace, air-through bonding, and thermally bonded processes, as well as in textile finishing processes.
The main advantage of the AutoWoven series of winders is the variety of cross-cutting and winding systems available. These systems enable automatic cross-cutting and winding of the material onto a new core, with or without the use of adhesive tape or glue.
In addition, the AutoWoven series is ideally suited for the inline production of cut-to-length or pre-finished rolls. For this reason, manual, semi-automatic, or fully automatic slitting systems are available.
A special winding shaft mount allows for winding onto 3-inch cores with relatively heavy rolls.
| Working width | 137,8 in. |
| Parent roll weight | 3306,9 lb |
| Winding diameter | Ø 59 in. |
| Core diameter | Ø 3 – 10 in. |
| Slitting systems | shear cut, crush cut |
| Slitting width | min. 1,2 in. |
| Machine speed | max. 1312,3 fpm |
| Knife adjustment | manual, semi or fully automatic |
| Handling systems | finished roll, core and packaging handling systems |
| Turret winder execution | Two-sided frame system with clamping heads or carrier system |
| Materials | Air through bonded, thermo-bonded, ADL, spunlace, textile |
