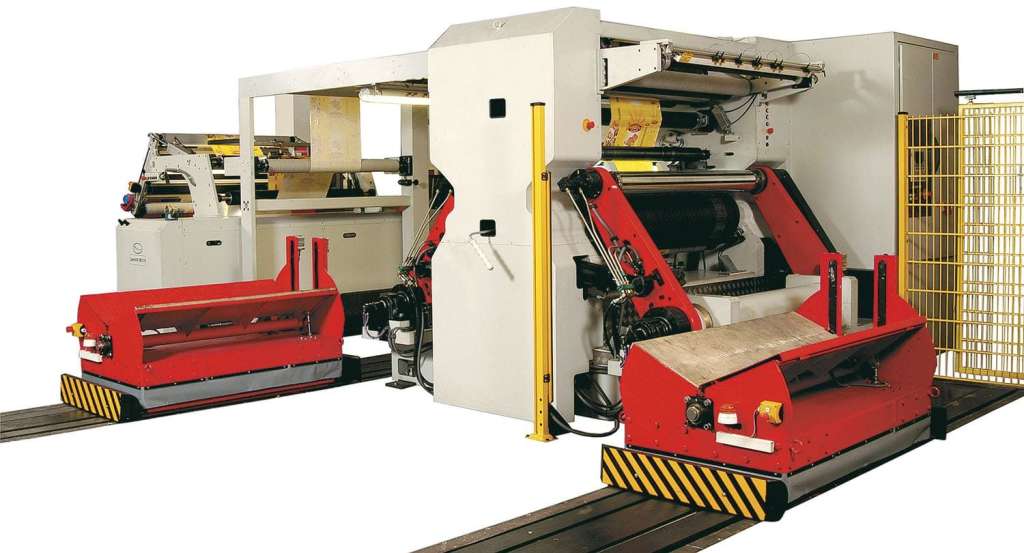

The machines in the SuperSlit series are designed for high cutting and winding capacities. They are suitable for the precise and efficient processing of virtually all materials with large winding diameters and roll weights.
For technical films, flexible packaging, laminates, metallic films, papers, nonwovens, and composite materials.
The machine winds the finished rolls onto two opposing winding levels and is equipped with a center and peripheral drive. Additionally, it can be upgraded as follows:
• Individual winding stations
• Automatic cutting unit

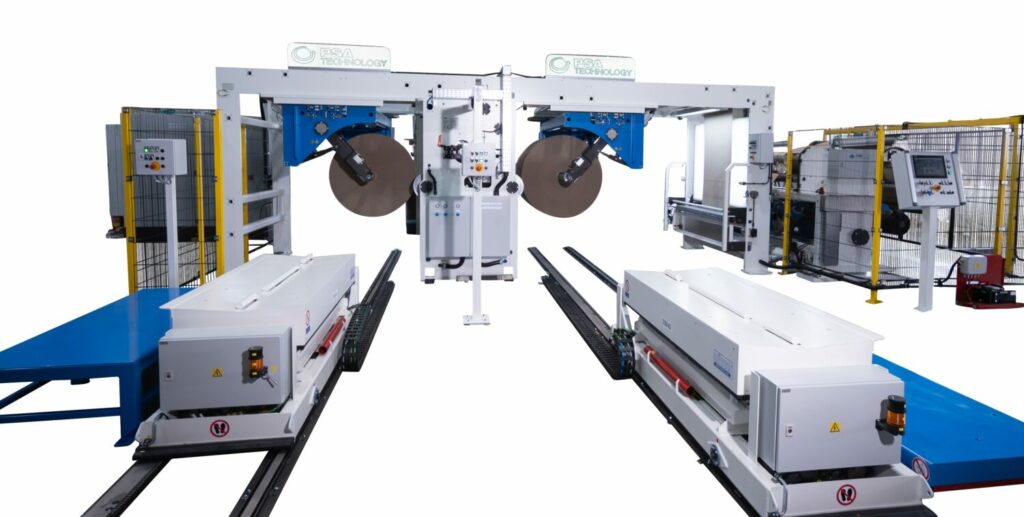

An automatic unloading system is also available as an option; it simplifies handling and reduces downtime. Our control system can also route the finished rolls to the next handling stage. The rolls are automatically cross-cut and transported to the packaging station via robots or conveyor belts.
| Working width | 31,5 – 157,5 in. |
| Parent roll weight | 11023,1 lb |
| Unwinding diameter | Ø 70,9 in. |
| Core diameter | Ø 2 – 7,9 in. |
| Slitting systems | shear cut, razor blade cut, crush cut, air cut, burst cut |
| Slitting width during winding | min. 0,1 in. |
| Slitting width at the winding station | min. 9,8 in. |
| Rewind diameter | max. Ø 59 in. |
| Machine speed | max. 2624,7 fpm |
| Materials to be processed | technical films, packaging films, coated soft and hard films, papers, laminates, aluminum composite materials |
