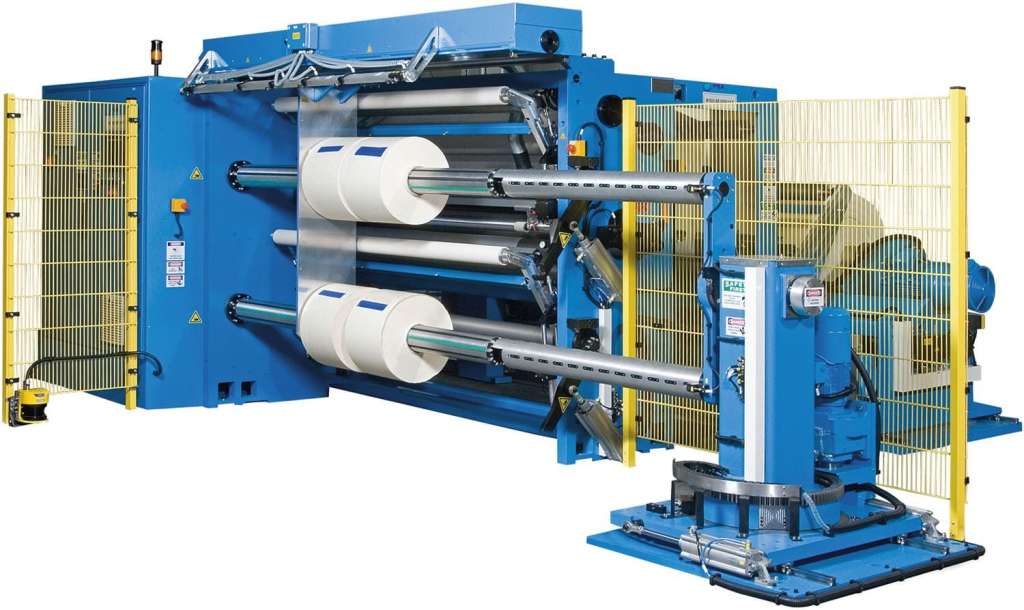

The handling system is located outside the cutting machine and can be equipped with a cutting and gluing table as well as various other auxiliary units. It is connected to the machine via a bridge (located either above or below the web path). A web monitoring system, for example, can be integrated here.
A wide variety of automatic handling systems for removing finished rolls are also available as an option. These simplify operation and reduce downtime.
Our custom-designed handling systems can also transport the finished rolls to the next stage of processing (the rolls are automatically cut and transported to the packaging station via robots or conveyor belts).
| Working width | 31,5 – 98,4 in. |
| Parent roll weight | 6613,9 lb |
| Unwinding diameter | Ø 63 in. |
| Core diameter | Ø 2 – 7,9 in. |
| Slitting systems Cutting system | shear cut, blade groove cut, crush cut |
| Slitting width | min. 0,3 in. |
| Rewind diameter | max. Ø 31,5 in. on both winding levels or optionally Ø 39,4 in. on the lower winding level |
| Machine speed | max. 2624,7 fpm |
| Materials | technical films, packaging films, soft and hard films, papers, laminates, aluminum composite materials |
